9601

Feature

• Wide Input Voltage Range : 8.0V to 32V.
• Input Voltage Absolute Maximum Rating : 36V.
• Up to 3.0A Output Current.
• CV/CC Mode Control (Constant Voltage and Constant Current).
• Output Constant Voltage: 5.1V.
• Output Voltage Accuracy: +1.5%.
• Fixed 135kHz Frequency Operation.
• Up to 95% Conversion Efficiency.
• Internal Soft Start: 12ms.
• Adjustable Line Compensation and Fixed Cable Compensation Voltage.
• Adjustable External Current Limit Setting:Default = 2.6A.
• CC (Constant Output Current) Limit Accuracy: +3%.
• Short Circuit Protection.
• VIN/VOUT Over Voltage and Over Temperature Protections.

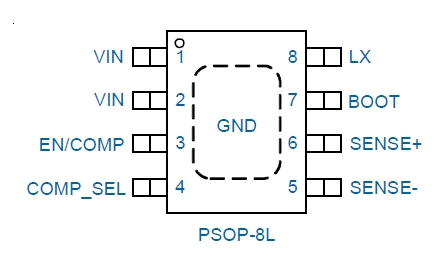

• PSOP-8L and VDFN6x5-8L Packages.
• RoHS Compliant and Halogen-Free.

Application

• PDA Like Device Car Chargerses.
• Portable Charging Devices.
