Feature

• Certification: uP9602 is certified by Qualcomm^® and UL. Please refer to the information below for verification:
• UL Certificate No. 4786937378-2 for uP9602P Series.
• UL Certificate No. 4787083995-2 for uP9602Q Series.
• http://www.qualcomm.com/documents/quickcharge-device-list
• Wide Input Voltage Range : 8V to 29V
• Input Voltage Absolute Maximum Rating: 36V
• Up to 3A Output Current
• CV/CC Mode Control (Constant Voltage and Constant Current)
• Internal QC2.0 Function (for uP9602P/uP9602Q)
• Automatic Selection of D+/D- Mode for an Attached Device
• Apple Mode: D+/D- Divider Mode 2.7V and 2.7V (for uP9602P)
• Short Mode:  BC1.2 DCP Mode (for uP9602P/ uP9602Q)Samsung Mode: D+/D- Divider Mode 1.2V and 1.2V (for uP9602P)
• Output Constant Voltage: 5.1V/9V/12V
• Output Voltage Accuracy: ±1.5%
• Fixed 135kHz Frequency Operation
• Up to 95% Conversion Efficiency
• Internal Soft Start: 10ms
• Fixed Cable Compensation Voltage
• Adjustable External CC (Constant Output Current) Limit Setting: Default = 2.6A
• CC (Constant Output Current) Limit Accurarcy:±3%
• Short Circuit Protection
• VIN/VOUT Over Voltage Protection and Over Temperature Protections

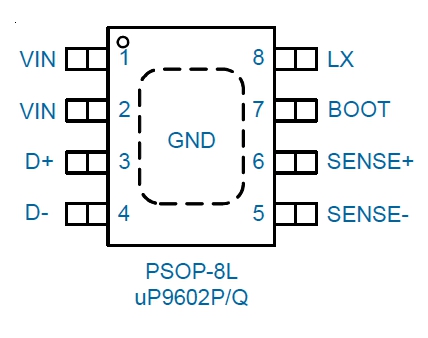

• PSOP-8L and VDFN6x5-8L Package
• RoHS Compliant and Halogen Free

Application

• PDA Like Device Car Chargers.
• Portable Charging Devices.
